1、 Product Introduction:

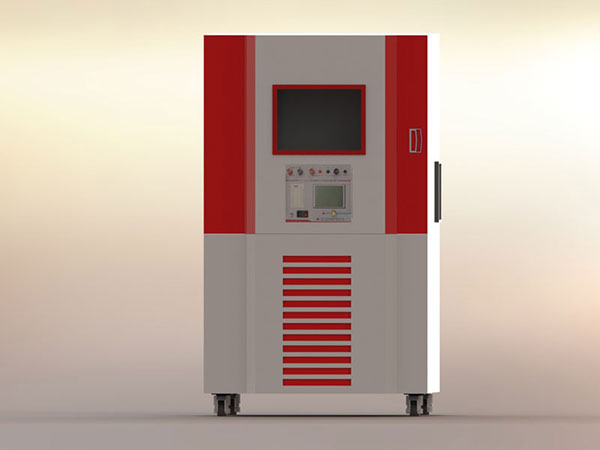

This equipment is used to simulate the dynamic operation of test materials in environments with various intensities of rain, in order to evaluate the working quality of the product.

2、 Product features:

The studio material is high-quality imported stainless steel plate, and the shell is A3 steel plate electrostatically sprayed

All other components that come into contact with water are made of stainless steel or copper material

This device is suitable for conducting lake water tests on product components and materials

3、 Product specifications and models:

Model GC-LY-800

Studio size 80 × 80 × 80

Studio temperature range RT

Spray radius 0.3~0.4mm

Straight spray pipe 900~2700 optional

High quality stainless steel spray pipe with a diameter of 600mm and a diameter of 20mm

Spray hole diameter and spacing 0.4mm

Spray pressure 60~100Kpa

The speed of the test bench is adjustable from 1 to 10 revolutions per minute, and the diameter of the test bench is 30mm

The equipment has a cyclic test control program that can set the on/off time. Equipped with a work timer

Equipment electrical power 1.5KW
