1、 Product Introduction:

Product model: GC-CY-50

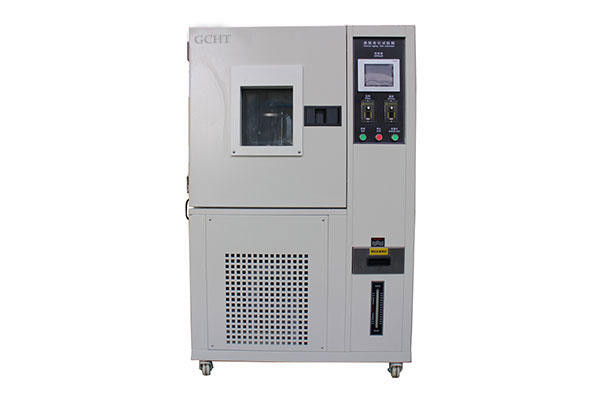

The ozone aging test chamber is used to test the ozone aging resistance of rubber and its products. The basic principle is that the low content of ozone in the atmosphere is the main factor causing rubber cracking. The Ozone Aging Chamber simulates and strengthens the ozone conditions in the atmosphere, studies the effect of ozone on rubber, quickly identifies and evaluates the anti ozone aging performance of rubber and the protective effect of anti ozone agents, and then takes effective anti-aging measures to improve the service life of rubber products.

2、 Structural features:

Stainless steel test chamber that meets international standards

Fully enclosed gas circuit for manufacturing and capturing ozone

Adjust the ozone concentration arbitrarily within the range of 10-500ppm (the maximum ozone concentration can reach 20000ppm)

Temperature range: RT+10 ℃~60 ℃

Motor driven lifting and reducing test device

According to international standards, the equipment can regulate ozone concentration, temperature, air flow rate, and relative humidity

The entire generation and capture of ozone gas is a closed circuit, ensuring personal safety

3、 Product specifications and models: GC-CY-50

Studio size 50X50X60cm

Studio temperature range RT+10~+60 ℃

Temperature fluctuation ± 0.5 ℃

Temperature deviation ± 2.0 ℃

Temperature resolution 0.1 ℃

Relative humidity ≤ 65% RH

Humidity resolution 0.1% R.H

Humidity deviation+2/-3% RH

Ozone concentration 0~1000pphm (adjustable set value)

Ozone concentration deviation ≤ 10%

Equipment electrical power 3~5KW

Equipment weight 250Kg

Equipment uses a power supply of 220V ± 10%
